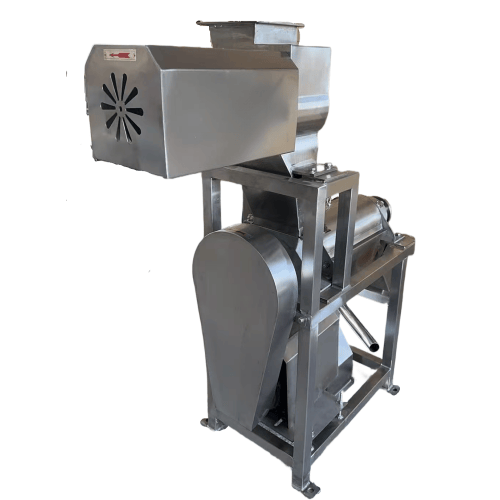

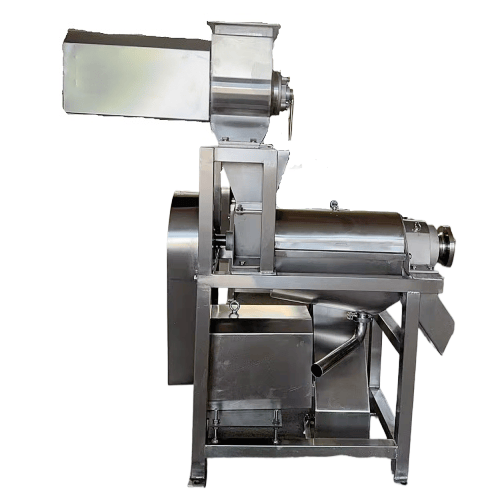

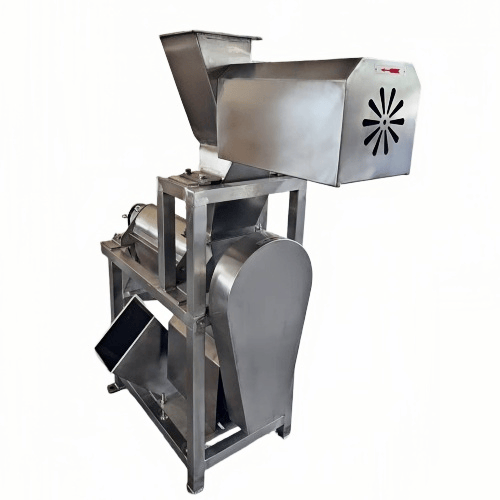

Product: Integrated Crushing & Press Machine

Country: United States

Application: Organic Solid

Integrated Crushing & Press Machine is a highly efficient and intensive solid-liquid separation pretreatment equipment. It integrates crushing (pulverizing) and pressing/dewatering processes into a closed system, making it particularly suitable for processing large, fibrous, viscous, or impurity-containing organic solid waste.

Due to its advantages such as reduced footprint, simplified processes, lower labor costs, and improved hygiene, this type of equipment has become the preferred solution for many industries.

I. Core Structure and Working Principle

The equipment typically consists of an upper crushing chamber and a lower pressing/dewatering section connected in series, sharing a common drive system or driven independently.

1. Crushing Stage:

Materials enter the crushing chamber through the feed inlet. Built-in high-speed rotating dual-shaft shearing blades or hammers/rollers cut, tear, and pulverize large pieces of material (such as fruits, vegetables, kitchen waste, straw, and residues) into uniform small particles (typically 10-50mm). The crushed material is easier to convey and dewater evenly.

2. Pressing/Dewatering Stage:

The core component is a variable-diameter, variable-pitch spiral shaft that rotates inside the screen cylinder. The crushed material falls directly into the pressing section below. Driven forward by the screw, the material gradually compresses, generating immense pressure. Liquids (water, oil, etc.) are discharged through the gaps in the screen cylinder under pressure, collected as filtrate. The dehydrated solids are discharged from the slag outlet at the end, forming dry slag.

The entire process operates continuously and automatically, integrating "feeding -> crushing -> pressing -> dry slag/liquid discharge".

II. Core Advantages

1. Streamlined Process, Low Investment:

One piece of equipment replaces multiple traditional "conveyor + crusher + screw press" devices, saving plant space, electrical control systems, and infrastructure costs.

2. Closed Operation, Environmentally Friendly:

The fully enclosed structure effectively prevents odor escape, mosquito and fly breeding, and wastewater leakage, greatly improving the working environment and meeting environmental protection requirements.

3. High Degree of Automation:

Continuous automatic operation is possible, reducing the intensity and cost of manual intervention.

4. Significant Volume and Weight Reduction:

Through crushing and high-pressure pressing, material volume can be reduced by 50%-70%, and weight by 30%-50%, significantly lowering subsequent transportation and disposal costs.

5. Resource-Oriented Pretreatment:

The produced "dry residue" is more suitable for incineration power generation, aerobic composting, or feed/fuel production; the "filtrate" facilitates subsequent anaerobic biogas production, wastewater treatment, or oil extraction.

The integrated crushing and pressing machine is the "heart" of modern organic solid waste treatment lines—the pretreatment equipment. Its successful application hinges on the "precise matching of materials and equipment."

JX Filtration can provide solutions ranging from single machines to complete pretreatment systems. If you can provide the aforementioned key operating conditions, we can provide you with more in-depth technical analysis and preliminary model matching suggestions.

After-Sale Services

Quality guarantee: 12 months after the equipment having been operated.
Satisfied after-sell service: free maintenance and inspection.
Detailed installation instructions, CAD drawing and product qualification certificate.
