Czechia + Scraper Self-Cleaning Filter + D-Limonene Solvent

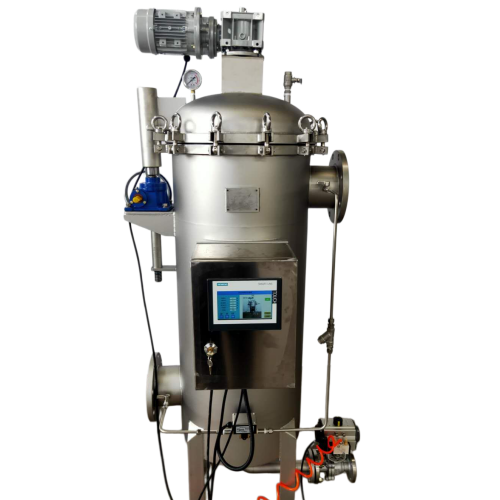

Product: Scraper Self-Cleaning Filter
Country: Czechia
Application: D-Limonene Solvent
For filtering d-limonene solvent, a spiral scraper self-cleaning filter is a technically well-suited option that significantly improves production automation and product stability. While the initial investment is higher than a simple filter, the long-term overall benefits are outstanding by eliminating consumable costs (filter bags/cartridges), reducing manual intervention and downtime losses.
I. Why is it so suitable?
The filtration of d-limonene solvent (typically extracted from citrus peel) often faces the following challenges:
- Typical impurities: May contain plant fibers, pectin, cell debris, waxes, etc. These impurities are sticky and flexible, easily adhering and entangled on traditional filter screens, leading to incomplete cleaning of ordinary backwash filters and rapid clogging of filter bags/cartridges.
- Solvent characteristics: d-limonene itself is a good organic solvent, exhibiting a swelling effect on many polymer materials. This requires the filter's sealing and scraper materials to have excellent chemical compatibility.
- Process requirements: Continuous and stable production is typically required, and interruptions due to frequent filter bag replacements or filter cleaning are undesirable.
Advantages of Spiral Scraper Filters:

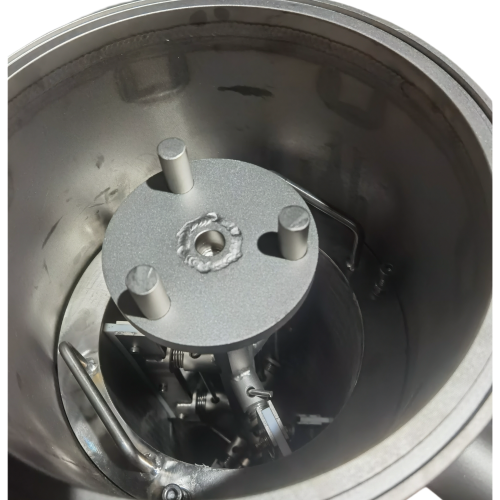

- Mechanical Scraping: The rotating spiral scraper powerfully and thoroughly removes sticky and fibrous impurities adhering to the inner wall of the filter screen, keeping the screen constantly clear.
- Continuous Fully Automatic Operation: Cleaning and slag removal are completed online without downtime, ensuring continuous production. This makes it ideal as a final-stage security filter or finished product filter after extraction processes.
- High Precision Guarantee: Provides stable high filtration accuracy (e.g., 50-100 microns), ensuring the clarity of the final product.
II. Key Parameters to Consider During Selection
- Material Specific State: Temperature, impurity concentration and characteristics, viscosity.
- Process Parameters: Processing flow rate, filtration accuracy, operating pressure.
- Material Compatibility: Filter screen, seals, scraper materials.
Please provide specific information such as flow rate, accuracy requirements, and explosion-proof rating. JX Filtration will provide you with professional selection advice based on this information, including complete material certification, explosion-proof certificate, and testing plan.
After-Sale Services
- Quality guarantee: 12 months after the equipment having been operated.
- Satisfied after-sell service: free maintenance and inspection.
- Detailed installation instructions, CAD drawing and product qualification certificate.
