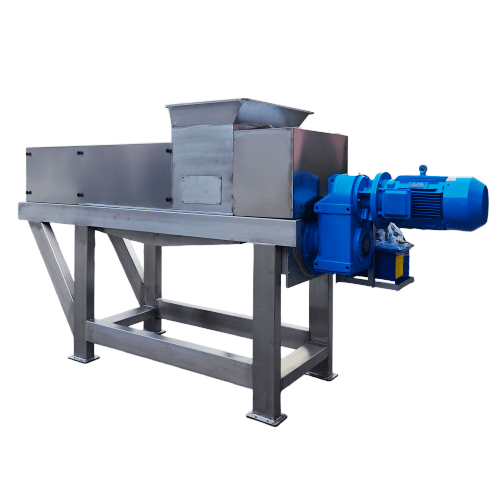

Product: Integrated Crushing & Press Machine

Country: United States

Application: Solid-Liquid Separation

In food processing, waste management, and biomass treatment, reducing material volume and recovering valuable liquids are essential steps that impact both operational costs and environmental compliance. Integrated Crushing & Press Machine offers a highly efficient solution by combining two critical processes—crushing and pressing—into a single, compact unit. At JX Filtration, we engineer these versatile machines to deliver reliable solid-liquid separation across a wide range of industries and applications.

Two-Step Process, One Integrated Machine

The machine operates through two core stages. First, the crushing stage: materials of varying sizes and shapes—such as fruit peels, vegetable scraps, food leftovers, or fibrous biomass—are fed into the crushing unit, where rotating blades or hammers break them down into smaller, uniform particles through shearing and impact. This preparation step increases surface area and disrupts cellular structures, making subsequent dehydration significantly more efficient.

Second, the pressing stage: the crushed material is conveyed into the pressing unit, typically a screw press mechanism. As the screw shaft rotates, the pitch gradually decreases while the screen aperture remains constant, continuously compressing the space and generating tremendous squeezing force. Moisture is forced out through the screen, while the dewatered solids are discharged through the outlet.

Versatile Across Industries

JX Filtration’s integrated crushing and press machines are widely used in:

Food & Beverage: Juice extraction from apples, grapes, and other fruits; dehydration of fruit and vegetable residues, peels, and cores
Kitchen & Food Waste Treatment: Processing food scraps, vegetable peels, organic residues, and canteen waste for composting or biogas production
Biomass Energy: Crushing and dehydration of seaweed, kelp, straw, and livestock manure for pelletizing or fermentation
Brewing & Distilling: Dewatering brewer's grains and other fermentation by-products
Wastewater & Environmental: Treatment of screenings and sludge from municipal facilities

Customized to Your Process

Every material has unique characteristics—moisture content, fiber content, particle size, and throughput requirements all vary. That is why JX Filtration offers full customization. We tailor crushing chamber design, screw configuration, screen mesh size, motor power, and contact materials to match your specific application and production targets. When you need efficient, reliable, and cost-effective solid-liquid separation, choose JX Filtration integrated crushing and press machines.

After-Sale Services

Quality guarantee: 12 months after the equipment having been operated.
Satisfied after-sell service: free maintenance and inspection.
Detailed installation instructions, CAD drawing and product qualification certificate.
