Multi-Bag Filter Housing
Maximum 38 bags with 1000m3/h treatment capacity.
Convenient to replace the filter bag, and the filter is free of cleaning.
Can bear high working pressure with small pressure loss.
The filter precision can reach 0.5μm.
Over 50000 sets sold each year.

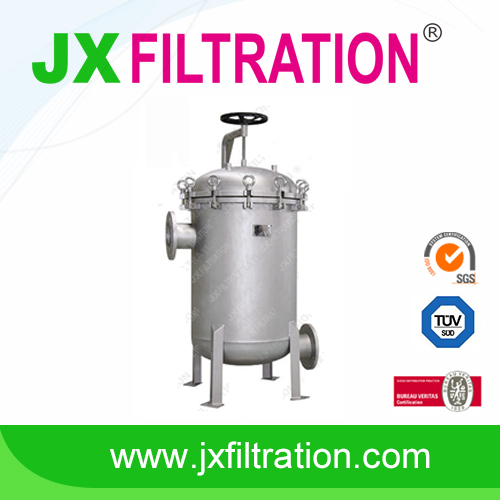

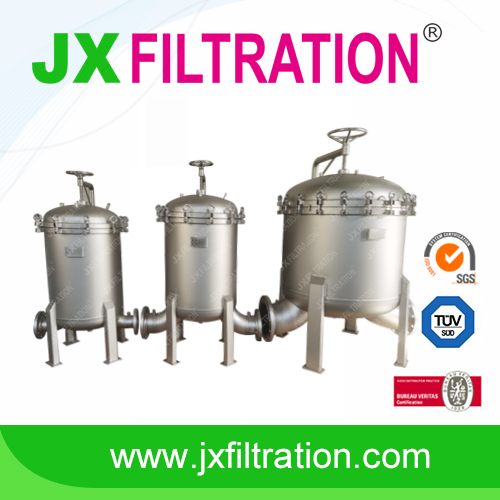

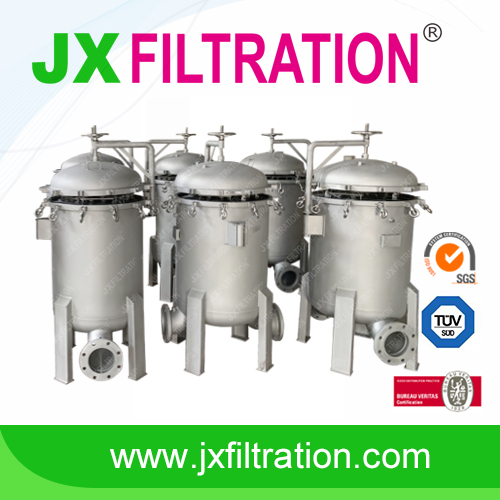

Multi-Bag Filter Housing
Description
The multi-bag filter housing is one of JX Filtration leading products containing maximum 38 bags with the largest treatment capacity. It has a large filtering area, small filtering resistance and high filtering efficiency.
The multi-bag filter is suitable for any occasions to replace the filter bag after a long time. The traditional multi-bag filter is difficult to operate due to its large volume and heavy top cover. However, the quick-opening design from JX Filtration can solve this problem and reduce labor costs.
Best Factory, Best Product. Contact Now !!!
Working Principle
The bag filter is mainly composed of three parts: filter container, support basket and filter bag.
When the bag filter is used to filter liquid, the liquid enters from the filter container's side or bottom, and it is flushed into the filter bag from the top of the filter bag supported by the basket. The filter bag expands due to the liquid's impact and the uniform pressure surface, which makes the liquid material evenly distributed on the filter bag's inner surface.
The liquid passing through the filter bag is discharged from the liquid outlet at the bottom of the filter along the metal supporting basket wall. The filtered particulate impurities are trapped in the filter bag to complete the filtration process.
| Mode | Bag Qty |
Filtering Area (㎡) |
Max Flow (t/h) |
Inlet/ Outlet Connection |
Working Pressure (Mpa) |
Housing Dia. (mm) |
Overall Height (mm) |
Housing Height (mm) |
| JXMBFH-3 | 3 | 1.5 | 105 | DN80 | 0.5 | 508 | 1592 | 1190 |
| JXMBFH-4 | 4 | 2 | 140 | DN100 | 0.5 | 558 | 1632 | 1244 |
| JXMBFH-6 | 6 | 3 | 210 | DN150 | 0.5 | 658 | 1854 | 1300 |
| JXMBFH-8 | 8 | 4 | 280 | DN150 | 0.5 | 760 | 1922 | 1404 |
| JXMBFH-10 | 10 | 5 | 350 | DN200 | 0.5 | 910 | 2004 | 1430 |
| JXMBFH-12 | 12 | 6 | 420 | DN200 | 0.5 | 962 | 2064 | 1460 |
| JXMBFH-14 | 14 | 7 | 490 | DN200 | 0.5 | 1012 | 2124 | 1490 |
| JXMBFH-16 | 16 | 8 | 560 | DN250 | 0.5 | 1112 | 2146 | 1512 |
| JXMBFH-18 | 18 | 9 | 630 | DN250 | 0.5 | 1162 | 2225 | 1595 |
| JXMBFH-20 | 20 | 10 | 700 | DN250 | 0.5 | 1212 | 2280 | 1640 |
| JXMBFH-22 | 22 | 11 | 770 | DN250 | 0.5 | 1366 | 2320 | 1694 |
| JXMBFH-24 | 24 | 12 | 840 | DN300 | 0.5 | 1416 | 2358 | 1748 |
Free Drawings, Customize Service Available. Contact Now !!!
Advantages- The side leakage rate of the filter bag is low, which virtually guarantees the filtering quality.
- Larger treatment capacity, filter bags can be frequently replaced.
- Surface treatment: sandblasting, mirror polishing, electrolyte polishing.
- Suitable for any fine particles or suspended solids, filtration precision 0.5um-1000um optional.
- Various inlet/outlet methods and connection types can be customized.
- The material of the equipment can be selected from stainless steel SS304, 316L, carbon steel, etc., according to the material and the.
- environment. The jacket can be installed if heat preservation is required.
- Automotive industry
- Copper foil
- Electronics industry
- Fine chemicals
- Paper industry
- Food and medicine
- Coatings
- Petrochemicals
