Vietnam+Horizontal Decanter Centrifuge+Fish Processing

September 9, 2022 Vietnam

Product: Horizontal Decanter Centrifuge

Country: Vietnam

Application: Fish Processing

Why fish processing needs horizontal decanter centrifuge:

80% of the total aquatic products produced by fisheries are directly consumed by humans, and the remaining 20% cannot be eaten directly, such as the mixed small fish, the fish head, fish bone, fish skin, etc. separated during the processing stage. Waste, if not handled properly, can have an impact on the environment, otherwise, it can be turned into valuable feed fish oil and fish meal.
Horizontal decanter centrifuge play a vital role in the processing of fish oil, fish meal and aquatic products such as surimi.

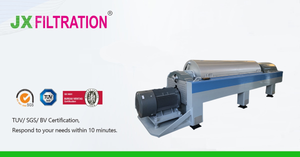

Type: Horizontal Decanter Centrifuge
Core Components: PLC, Engine, Gearbox, Motor, Pressure vessel
Voltage: 280
Weight: 5500
Size: 4870x1230x1520
Warranty time: 1 year
Power: 55
Dimension(L*W*H): 4870*1230*1520
Max speed: 2800

Advantages:

1. Fast liquid-solid separation;
2. Can run continuously and automatically;
3. Good separation effect, high efficiency and reliability.

Working Principles:

The drum, the differential, and the spiral are the three key components of the horizontal decanter centrifuge.
It is a equipment that uses the principle of centrifugal sedimentation to separate suspension. It can be divided into two-phase separation horizontal decanter centrifuge and three-phase separation horizontal decanter centrifuge, the former is mainly used for solid-liquid separation.
Its working principle is: the suspension enters between the centrifuge drum and the screw, and is driven by the main motor. The lower screw and the drum rotate at high speed to generate centrifugal force, and the suspension is formed in the drum.
into an annular pool. The dense solid particles in the material are under the action of centrifugal force deposited on the inner wall of the drum, due to the existence of the differential, the formation between the spiral body and the drum relative movement, so that the spiral body continuously scrapes off the particles deposited on the inner wall of the drum. It is discharged from the slag discharge port, and the separated clear liquid is discharged from the overflow port of the drum, so as to realize the solid-liquid two-phase separation.

Three-phase separation horizontal decanter centrifuge, mainly used for solid-liquid-liquid separation. That is, the simultaneous separation of one solid phase and two liquid phases with different densities. How it works is: Under the action of centrifugal force, the material forms three relatively stable layers, starting from the drum wall, inwards are the same phase layer, heavy liquid layer, light liquid layer. The solid phase layer is driven by the helical body to the small end of the drum and is discharged from the slag discharge port. The heavy liquid layer and the light liquid layer follow the spiral blades holes to the big end of the drum, and then discharge from different outlets to achieve continuous three-phase separation.

After-Sale Services

Quality guarantee: 12 months after the equipment having been operated.
Satisfied after-sell service: free maintenance and inspection.
Detailed installation instructions, CAD drawing and product qualification certificate.
