Internally Fed Rotary Drum Screen

Our Advantage

Free CAD or 3D drawing available.

Siemens or SEW motors to ensure the operation stability.

Schneider or Siemens control system with multi-language display.

Perfect after-sales service with maximum 5 year quality guarantee.

Can be customize according to filter media, filter precision and customer’s request.

Rich experience in all kind of applications to ensure every equipment can be fully used.

Independent research and Autonomous production of key component to ensure equipment quality.

Internally Fed Rotary Drum Screen

Description

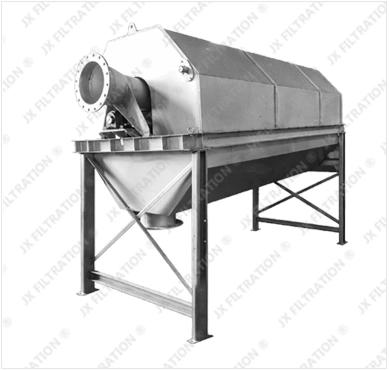

Internally Fed Rotary Drum Screen is an internally fed screening device with the flow being fed and distributed inside a screening cylinder. It is widely used to separate settleable solids from liquid in the municipal and industrial wastewater treatment plants.
Internally Fed Rotary Drum Screen can be designed to open type or fully covered type according to the onsite working condition.

internally fed rotary drum screen

Two Types of Screens
Perforated Screens----provide a high capture rate of materials bigger than the perforation size.

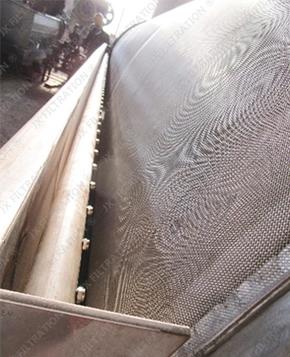

Wedge Wire Screens----minimize the risk of clogging and maximizes permeability ratio with the V-shaped profile.

Free Drawings, Support Customized. Contact Now !!!

Working Principle

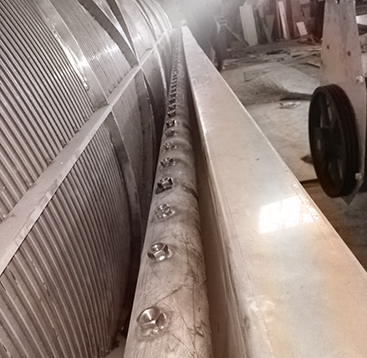

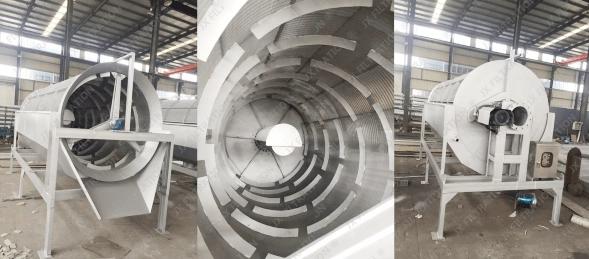

The rotary drum filter is mechanical filtration equipment, including transmission device, overflow weir water distributor, rinse water device and other significant components. The filter drum is made of stainless steel wedge wire screen. The working principle is that the treated water enters the overflow weir distributor from the pipe mouth; after a short period of steady flow, it evenly overflows from the water outlet and distributes the filter drum that rotates in the opposite direction. The water flow will generate a relative shearing motion with the inner wall of the filter drum, with high water efficiency, in which the solid is retained and separated, and tumbles by following the spiral guide plate in the filter drum, and discharges from the other end of the filter drum, and the wastewater filtered out from the filter drum flows out from the side sink under the flow guiding of protection cover from the right direction. The outside of the filter drum is equipped with a flushing water pipe. It is sprayed with pressure water (3Kg/m²) in a fan-shaped manner to flush and dredge the filter mesh to ensure that it always keeps good filtering capability.

Application
Water treatment plants, Municipal wastewater treatment plants
Industrial wastewater treatment plants: paper mills, food industry, beet industry, leather industry, textile industry, plastic recycling industry, etc.

internally fed rotary drum screen

Rotary Drum Filter PDF Download

Internally Fed Rotary Drum Screen

FAQ

Where is your factory?

We have three factories in Sichuan, Hebei, Jiangsu. Because the difference of customer locations, raw material price, factory wages and other considerations. In this way, we can provide the best quality product with lower cost.

Do you have a certification?

Yes. we have ISO/CE/BV/SGS/TUV certificate and patent certificate.

How about the delivery time?

Usually 1-15 days after prepayment is confirmed.

Do you have a design team?

Yes, we have. Providing drawing, electric drawing and others.

What is your payment?

T/T, L/C, Western Union, Paypal.

Can you provide certificate of origin?

yes, we can provide CO as well as FORM E, FOEM F and etc.

Can you accept OEM?

Yes, we could do OEM for you.

Can you send me a sample?

Yes.1-3 days for delivery.
