Thailand + Integrated Crushing & Press Machine + Juice Production

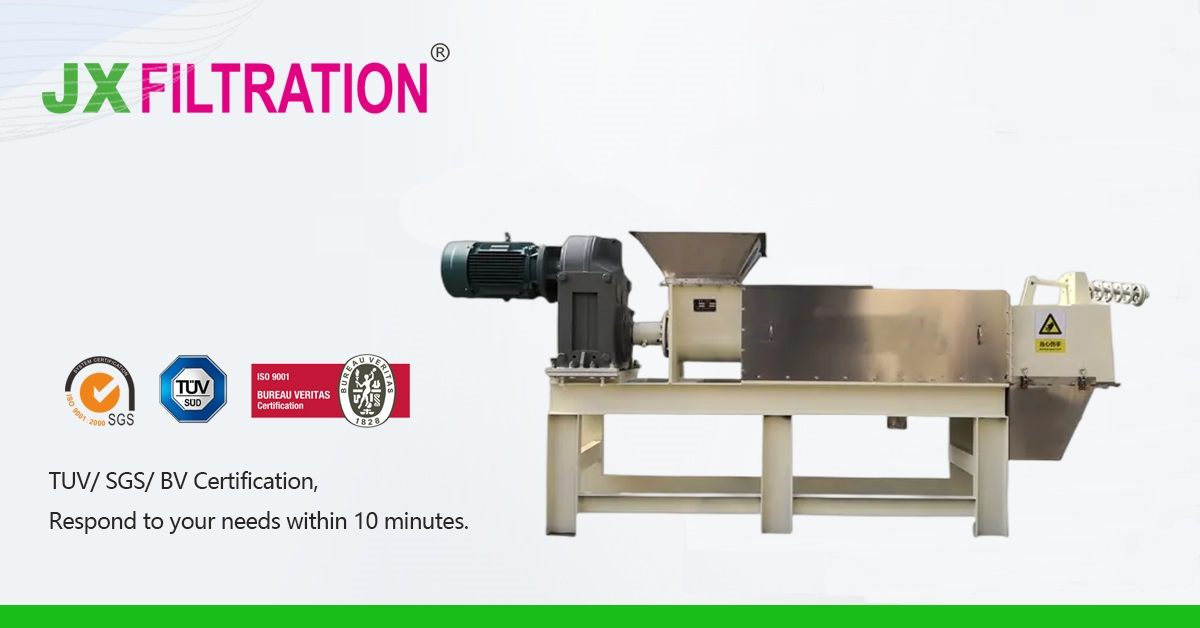

Product: Integrated Crushing & Press Machine
Country: Thailand
Application: Juice Production
In the juice production process, Integrated Crushing & Press Machine as a highly efficient solid-liquid separation device, primarily performs two core functions. Its application can be broken down into the following key stages:
1. Crushing Pre-treatment Stage
• High-speed crushing blades break fruits (such as apples, citrus fruits, berries, etc.) into uniform fine particles, disrupting cell wall structure and releasing cell contents, providing an ideal material form for subsequent efficient pressing. JX Filtration's anti-winding blade technology can handle high-fiber raw materials (such as pineapples and mangoes), preventing material blockage.
2. Multi-stage Pressing and Juicing Stage
The spiral progressive pressing system uses precise pressure control (typically 0.5-2MPa) to press the pulp in stages, maximizing juice yield while ensuring gentle extraction.
Specially designed screens (optional 316L stainless steel/food-grade wedge wire mesh filter cartridges) efficiently separate juice and pulp, typically increasing juice yield by 15-25% compared to traditional processes.
The integrated vibration residue removal system automatically discharges low-moisture fruit pomace (moisture content ≤65%), significantly reducing subsequent processing costs.
Typical Applications
- NFC Juice Production: Low-temperature crushing and pressing to maintain natural enzyme activity.
- Jam Raw Material Processing: Controlling pulp particle size within the range of 0.5-3mm.
- Fruit Pomace Resource Utilization: Fruit pomace with a fiber content of 65% after drying can be directly used as feed.
JX Filtration offers customized solutions, configuring spiral filters of different diameters, pressure gradient curves, and sieve aperture sizes (0.1-1.5mm selectable) according to the characteristics of different raw materials such as berries/stone fruits.
After-Sale Services
- Quality guarantee: 12 months after the equipment having been operated.
- Satisfied after-sell service: free maintenance and inspection.
- Detailed installation instructions, CAD drawing and product qualification certificate.
