Italy + Meltblown Filter Cartridge + Water Filtration

March 27, 2026 Italy

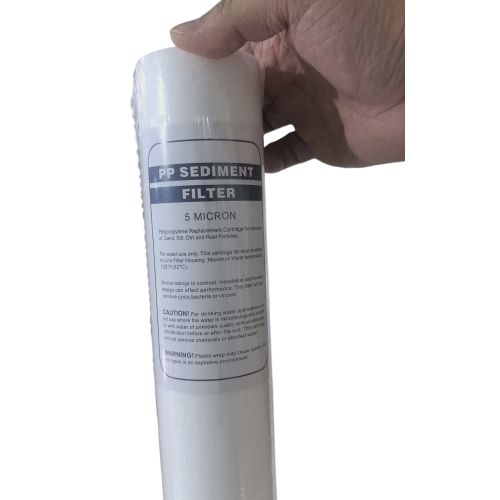

Product: Meltblown Filter Cartridge

Country: Italy

Application: Water Filtration

Meltblown filter cartridges are disposable deep-layer filter cartridges that use physical depth interception, have a gradient density structure, and are economical and practical. They are the mainstay of pre-filtration and clarification filtration for industrial fluids

Main Technical Parameters

Filtration Accuracy: Typically ranges from 1μm to 100μm. Common specifications include 1μm, 5μm, 10μm, 20μm, and 50μm.

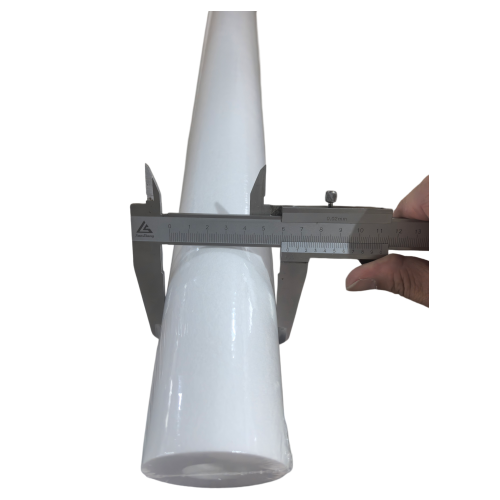

Dimensions (Outer Diameter × Length): Common sizes are 2.75 inches (approximately 70mm) × 10 inches (254mm) and 4.5 inches (115mm) × 10 inches (254mm), with lengths also available in 20 inches, 30 inches, and 40 inches.
Maximum Working Pressure: Typically 0.4-0.6 MPa (4-6 bar).
Working Temperature: Generally ≤ 60°C for PP material.
Pressure Differential: The recommended maximum initial pressure differential is no more than 0.02 MPa, and the replacement pressure differential is typically 0.1-0.2 MPa.

Advantages:

High Cost-Effectiveness: Single-use, relatively inexpensive, making it an ideal choice for pretreatment.
High Dirt Holding Capacity: Benefits from its deep and gradient filtration structure.
Easy Replacement:As a standard consumable, it can be quickly replaced in bag filters or cartridge filters.
Wide Range of Applications: Suitable for coarse and fine filtration of various liquids and gases.

Disadvantages:

Single-Use: Cannot be cleaned and regenerated like bag filters or self-cleaning filters, resulting in waste consumables.
Precision Limitations: For applications requiring ultra-high precision (e.g., <1μm) or absolute precision, it is less effective than membrane filtration (e.g., ultrafiltration, reverse osmosis) or certain precision pleated cartridges.
Limited Strength: Compared to sintered or stainless steel cartridges, it has lower mechanical strength and impact resistance.

Typical Application Areas:

Pretreatment Protection: Installed upstream of RO reverse osmosis systems, UV sterilizers, ion exchange resins, or precision instruments (such as flow meters) to remove suspended solids, rust, silt, colloids, etc., protecting expensive downstream equipment.
Cooling Water/Circulating Water Filtration: Removes particulate matter from the system.
Chemical Feed Solution Filtration: Removes insoluble impurities from raw materials before adding them to the system.
Food and Beverage Industry: Clarification filtration of syrups, beverages, edible oils, etc.
Electronics Industry: Pretreatment stage in ultrapure water preparation.

After-Sale Services

Quality guarantee: 12 months after the equipment having been operated.
Satisfied after-sell service: free maintenance and inspection.
Detailed installation instructions, CAD drawing and product qualification certificate.
