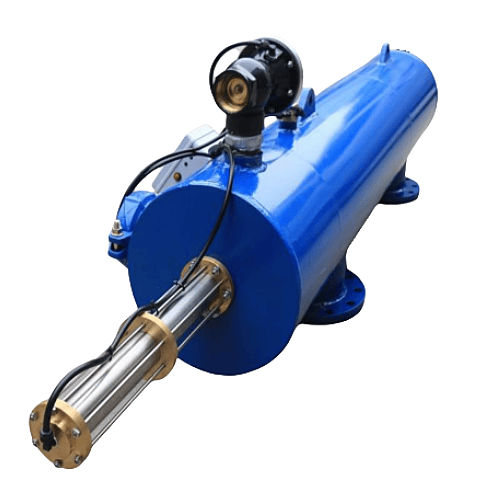

Why Choose JX Filtration's Hydraulic self-cleaning filter?
Clean water is essential for industry, but filtration downtime costs money. JX Filtration offers a smarter way: the Hydraulic self-cleaning filters. It cleans itself using only the water pressure already in your system – no electricity, no motors, no complex controls.
How It Works
Water enters through a coarse screen that removes large debris, then passes to a fine mesh. As particles accumulate, the pressure differential rises. When it reaches a preset level (typically 0.5 bar), the cleaning cycle starts automatically. A flush valve opens, releasing pressure from a hydraulic piston. This creates suction inside a dirt collector, while a hydraulic motor rotates it and the piston moves it axially. The suction nozzles sweep the entire screen surface, removing trapped solids. The cycle lasts just 10 seconds, and flow continues without interruption. The valve then closes, and the filter resets.
Key Advantages
- Zero power consumption – No external energy needed, cutting operational costs.
- Uninterrupted operation – Cleaning happens online, with no bypass or shutdown.
- Low maintenance – No electric parts to fail, simple mechanical design.
- Water saving – Uses less than 1% of total flow for flushing.
- Flexible installation – Works anywhere with line pressure, perfect for remote sites.
Wide Application Range
Our filters offer precision from 10 to 3000 microns, serving diverse industries: steel mills (cooling water), power plants (boiler pre-treatment), agriculture (irrigation), automotive (paint shop water), and offshore platforms (seawater cooling). Housings are available in carbon steel, stainless steel 304/316L, or alloys like Hastelloy for corrosive fluids.
Control Options
Three modes start the cleaning cycle: differential pressure (most efficient), timer (fixed interval), or manual override. Optional remote monitoring via Modbus or 4‑20 mA signals integrates with your SCADA system.
JX Filtration has supplied water treatment equipment to over 60 countries. Our product line includes wedge wire screens, automatic backwash filters, rotary drum screens, bag filter housings, and volute dewatering presses. Each unit undergoes strict hydrostatic testing and performance verification before delivery.
Sustainable and Future-Ready
As water scarcity grows, our hydraulic filter reduces both energy use and backwash discharge. It extends the life of downstream equipment and lowers manual intervention. The global self-cleaning filter market is expanding rapidly, and JX Filtration is your trusted partner for innovative, cost-effective solutions.
Choose JX Filtration – Clean Water, Clear Advantage
Don’t let filtration become a bottleneck. Our hydraulic self-cleaning filter delivers autonomous, reliable performance without the power bill. Contact us today to find the right model for your application.
