What materials are suitable for spiral scraper self-cleaning filters?

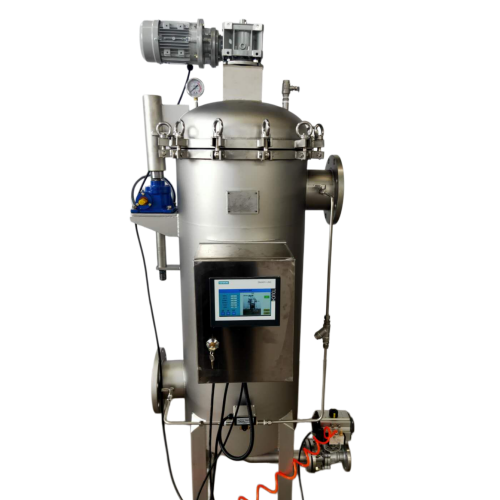

The spiral scraper self-cleaning filter is a uniquely designed precision filtration device designed for demanding working conditions. It exhibits irreplaceable advantages in handling viscous, fibrous, or plastic solid materials that traditional filters easily clog.

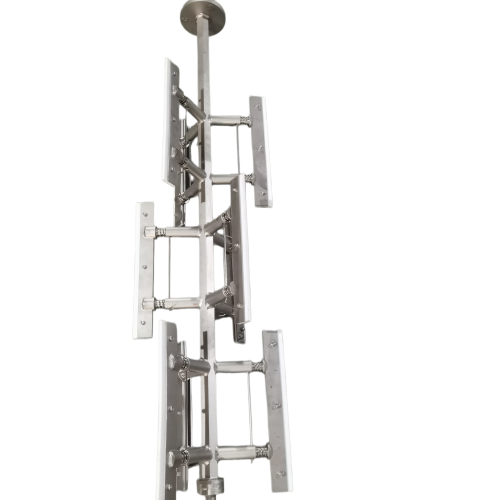

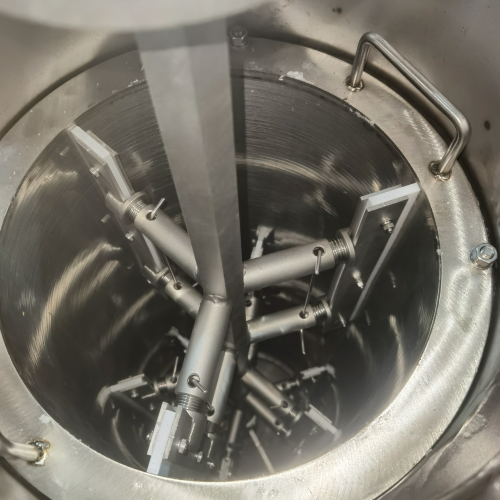

Its core working principle is as follows: a precision spiral shaft driven by a motor continuously and physically scrapes away and pushes the filter residue trapped on the inner wall of the filter screen to the discharge port during filtration. This achieves truly uninterrupted online cleaning.

I. Best Material Characteristics (Core Advantage Scenarios)

This type of filter is designed for materials with one or more of the following characteristics:

1. High viscosity or easily sticky materials

• Examples: Syrups, jams, chocolates, oils, crude oils, heavy fuel oils, polymer melts, resins, coatings, inks.
• Why it's suitable: The mechanical force of the scraper effectively breaks down the adhesion of sticky materials on the filter screen, preventing them from caking.

2. Materials containing flexible, fibrous, or plastic impurities

• Examples: Textile wastewater (containing cotton lint and fibers), paper pulp, municipal wastewater (containing hair and textile fibers), plant extracts (containing pectin and plant fibers), slaughterhouse wastewater.
• Why suitable: Traditional backflushing or suction cleaning methods struggle to thoroughly remove fibers entangled in the filter screen, while the spiral scraper forcibly peels and removes them.

3. Materials with high solids concentration and "pasty" particle characteristics

• Examples: Biochemical sludge, certain chemical intermediates, drilling mud.
• Why suitable: Enables continuous discharge of thick, pasty filter residue, maintaining a stable filtration pressure differential.

4. Operating conditions requiring extremely high precision protection for downstream sensitive equipment

• Examples: Protecting spray dryer nozzles, protecting precision heat exchangers, serving as a final barrier for extruders or injection molding machines.
• Why suitable: Provides stable, high-precision filtration without affecting the main process.

II. Inapplicable Situations

• Not suitable for: Extremely hard, highly abrasive particles (such as silica sand, metal shavings). These particles will severely wear down the scraper and filter screen, leading to rapid equipment failure. For such materials, a rotary scraper filter or other types should be used.

The spiral scraper self-cleaning filter is an "expert in challenging filtration tasks." When your material renders ordinary filters ineffective—frequent clogging, inefficient cleaning, and inability to operate continuously—it is a solution worth considering. Please provide the specific material name, characteristics, and filtration objectives; JX Filtration can then conduct an in-depth feasibility analysis and design a solution for you.
