How to choose horizontal or hydraulic self-cleaning filter?
The core difference between horizontal self-cleaning filters and hydraulic self-cleaning filters lies in the power source driving the cleaning action, which directly affects their structure, applicable scenarios, and operating costs. A detailed comparison is as follows:

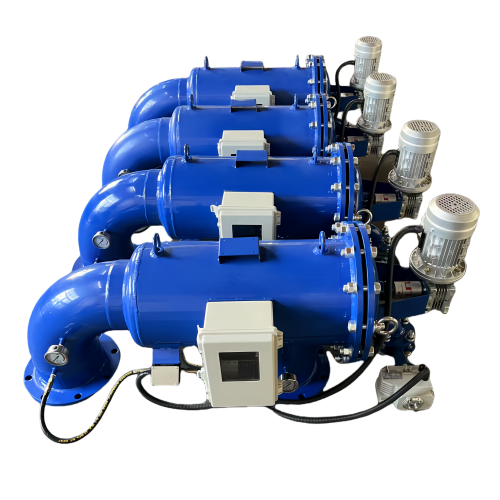

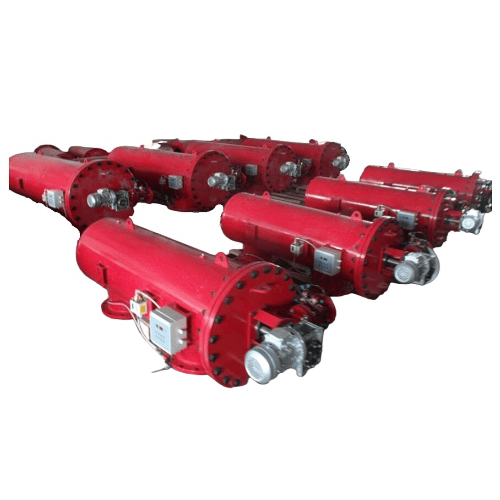

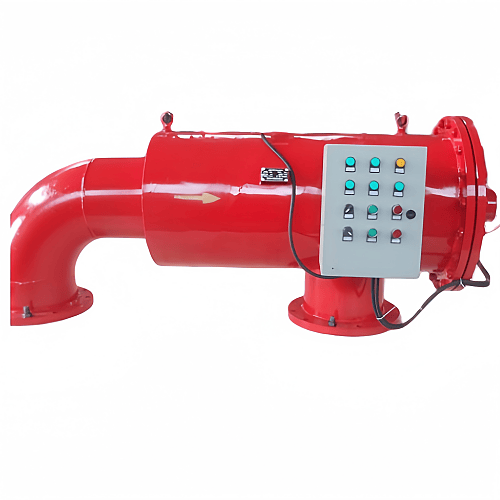

1. Horizontal Self-Cleaning Filter
Drive Method:
Typically driven by an electric motor, which rotates/moves a suction device or brush to clean the filter screen surface.
Structural Features:
Generally a horizontally mounted cylindrical housing containing the filter screen and an electric cleaning system.
Advantages:
- Strong cleaning power, capable of handling highly viscous or firmly attached impurities.
- Controllable cleaning process (e.g., timed, differential pressure triggered), high degree of automation.
- Wide applicable pressure range, with lower requirements for inlet water pressure stability.
Applicable Scenarios:
- Conditions with poor water quality, viscous impurities, or oil content (e.g., cooling circulating water, pre-treated wastewater).
- Applications with large system pressure fluctuations or low pressure.
- Requirements for frequent cleaning or high-precision filtration (common precision 25-3000 microns).
2. Hydraulically Driven Self-Cleaning Filter
Drive Method:
Utilizes the water pressure of the pipeline system to drive a hydraulic motor or piston mechanism, causing the suction device to rotate/reciprocate; no electricity is required.
Structural Features:
Mostly employ a compact design, requiring no external power supply; the core power comes from the fluid itself.
Advantages:
- Explosion-proof Safety: No motor required, suitable for flammable and explosive environments (such as petrochemical and oil fields).
- Energy Saving: No electricity required, reducing long-term operating costs.
- Easy Installation: No power distribution lines required, especially suitable for remote or outdoor sites.
Applicable Scenarios:
- Industries with strict explosion-proof requirements (chemical, oil and gas, storage and transportation).
- Situations without a stable power supply or where energy consumption reduction is desired.
- Medium-to-low pressure systems with relatively clean water and weak impurity adhesion (commonly used for filtration accuracy 100-3000 microns).
If you require more detailed solutions or equipment selection advice for specific industries, please provide the details, and JX FILTRATION will analyze suitable models and technical parameters for you.
