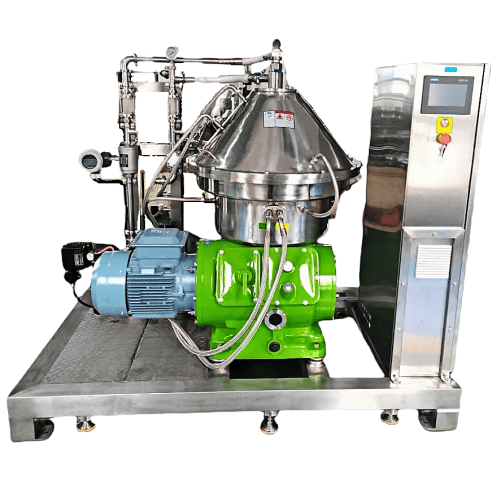

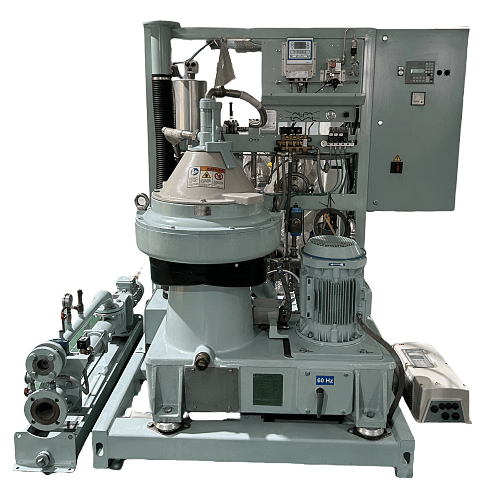

Why Choose JX's Three-Phase Disc Centrifuge?
Many industrial processes involve mixtures of two immiscible liquids and suspended solids—oil, water, and fine particulates, for example. Traditional separation methods often require multiple stages, consuming time, space, and energy. The three-phase disc centrifuge changes that paradigm, delivering simultaneous separation of light liquid, heavy liquid, and solids in one continuous operation. At JX Filtration, we engineer these high-speed separators to meet the most demanding purity requirements, with full customization for your specific process.
How It Works – The Disc Stack Advantage
The heart of the machine is a high-speed rotating bowl containing a stack of conical discs. Feed enters the bowl and is accelerated by centrifugal force. Under this immense force, the three phases separate into distinct concentric layers: solids (densest) migrate outward to the bowl wall; heavy liquid forms the middle layer; and light liquid moves inward toward the center. Each phase is then discharged through its own dedicated outlet—two liquid ports and one solids discharge port.
The disc stack multiplies the effective separation area within a compact footprint, enabling the capture of particles as fine as 0.5 microns. This makes the three-phase disc centrifuge ideal for applications where conventional gravity settling or coarser screens simply cannot achieve the required clarity.
Key Advantages Over Other Technologies
Superior Separation Quality. The high G-force and large disc surface area produce exceptionally clean liquid phases. In oil-water-solid applications, output oil typically achieves BS&W (Base Sediment & Water) of just 2–3% , ensuring high product quality. Heavy liquid phases also see significantly reduced solid content.
Handles Fine Particles and Low Solids. While decanter centrifuges excel at high-solid feeds, disc centrifuges are purpose-built for feeds with solids content between 1–5% and fine particle sizes. They deliver a level of clarification that other equipment cannot match.
Compact and Efficient. The vertical, disc-stack design occupies minimal floor space while delivering high throughput. Fully sealed operation ensures low noise and prevents contamination.
Every separation challenge is unique. Feed composition, flow rate, particle size, and target purity all vary. That is why JX Filtration provides full customization for every three-phase disc centrifuge order. We tailor bowl diameter, disc configuration, motor power, material grades (SS304, SS316L, Duplex stainless steel), and automation level (manual or PLC-controlled) to match your specific requirements.
Any requirements, contact us now!
