Externally Fed Drum Screen Filter

Precision filter is also called security guard filter which generally set before the pressure vessel to remove fine particles with the turbidity more than 1 degree so as to meet the requirements of water in subsequent processes.

Product Details

Precision filter is also called security guard filter which generally set before the pressure vessel to remove fine particles with the turbidity more than 1 degree so as to meet the requirements of water in subsequent processes. Sometimes, it also set at the end of the whole water treatment system to prevent the fine particles (such as a broken resin) to flow into the water.

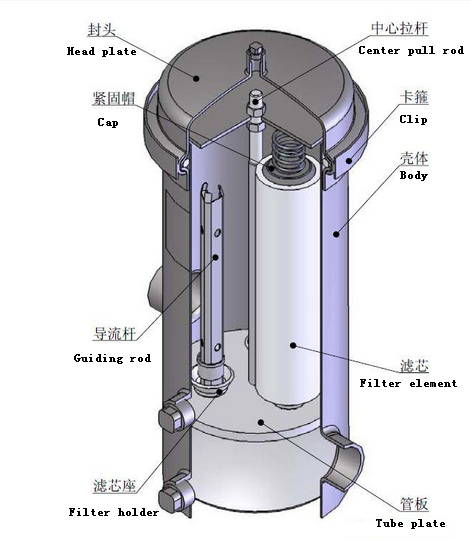

Equipment structure

Technical parameter

Model

Spec.

Flow t/h

Inlet  Height

mm

Outlet  Height

mm

Drainage Valve  Height
     mm

Size of Internal Rod  inch

Body  Diameter

Total  Height
   mm

JXY3-10

10×3

1.5

250

70

40.130

1

180

400

JXY5-10

10×5

2.5

250

70

40.130

1

200

400

JXY3-20

20×3

3

300

70

40.130

1.2

200

610

JXY5-20

20×5

5

300

70

40.130

1.2

200

610

JXY7-20

20×7

7

300

70

40.140

1.5

250

610

JXY9-20

20×9

9

300

70

40.140

1.5

300

610

JXY12-20

20×12

12

300

70

40.130

2

350

610

JXY5-30

30×5

7.5

500

70

40.130

1.5

220

900

JXY7-30

30×7

10.5

500

70

40.140

1.5

250

900

JXY9-30

30×9

13.5

500

70

40.140

2

300

900

JXY12-30

30×12

18

500

70

40.140

2

350

900

JXY5-40

40×5

10

550

90

40.130

1.5

220

1150

JXY7-40

40×7

14

550

90

40.140

2

250

1150

JXY9-40

40×9

18

550

90

40.140

2

300

1150

JXY12-40

40×12

24

550

90

40.140

2.5

350

1150


Advantage

1.Sealing structure is simple and reliable.
2.Higher filtration efficiency.
3.High filter precision and uniform filtration aperture.
4.Lower filter resistance, great flux ,strong capacity and long service life.
5.With high purity,the cartridge material has no pollution to the filter medium.
6.Easy to clean, filter cartridge can be replace.

Application

Widely used in the pretreatment and terminal processing of electronic industry,pharmaceutical industry,drinking water,food, beverage,beer and other industry.
