Wedge wire screen panels, also called wedge wire flat screens, wedge wire panels, are manufactured with stainless steel surface profiles and support profiles.

Product Details

Wedge wire screen panels, also called wedge wire flat screens, wedge wire panels, are manufactured with stainless steel surface profiles and support profiles. The surface profile are welded onto support profiles at each intersection in a 90 degree.

Wedge wire screen panels are composed of surface profile and support profile. The surface profile is commonly triangle wire, and the support profile can be triangle wire, wedge wire, round bar and rectangular bar. They can suit different machines and can be used in various applications.

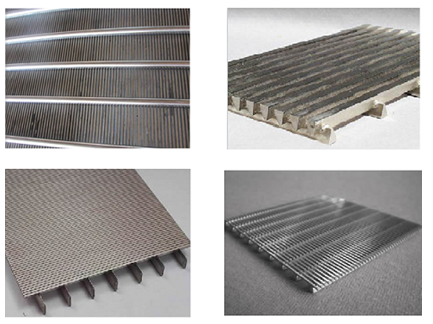

Support types of wedge wire screen panel

1. Round bar support profile               2. Triangle bar support profile
3. Rectangular bar support profile      4. Wedge wire support profile




Specifications

  • Material: stainless steel.

  • Surface profile type: triangle wire.

  • Support profile type: round bar, rectangular bar, wedge wire,      triangle wire.

  • Slot size: 0.05 mm - 10 mm.

  • Pitch: 10 mm - 35 mm.

  • Panel width: 500 mm - 2000 mm.

  • Panel length: 500 mm - 3000 mm.


Application

Wedge wire screen panels have a wide range of applications, the main applications are sieving and filtration. It can also be used as decorative materials in some buildings. The detailed application fields are as follows:

  • Vibrating screen decking.

  • Surface water intake screens.

  • Fish diversion screen panels.

  • Hatchery screens.

  • Grain drying screen.

  • Malt kin or germination floors.

  • Decorative materials.


Advantage

  • Flat surface.

  • Excellent filtering performance.

  • Accurate distance between supporting profile.

  • Welded production process for solid and strong structure.

  • Good mechanical properties.

  • High strength.

  • High load capacity.

  • Corrosion and rust resistance.

  • Temperature resistance.

  • Chemical stability.
