Internally Fed Rotary Drum Screen

Bag Filter

Previous:

Next:

Externally Fed Drum Screen Filter

The Internally fed rotary drum screen is used for filtration, the filtration process used here is inside out.

Product Details

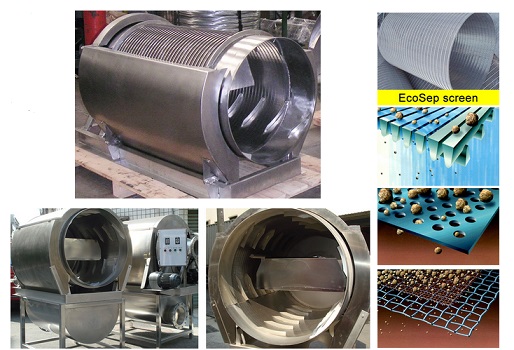

The Internally fed rotary drum screen is used for filtration, the filtration process used here is inside out.The Internally fed rotary drum screen consists of a filtration screen drum which is rotating. The effluent to be filtered is fed right into the center of the drum. The rotating drum also consists of screw flights to move the trapped solids in the forward direction. The solids are trapped inside the drum and the filtered water simply flows out through the screen by gravity. The clogged screen is cleaned by a back washing flushing arrangement and a brush. Both these arrangements are provided from the outside of the screen. The feed into this equipment has to be pumped inside. The bottom collection tank has three compartments, one where the filtrate is collected, second where the overflow can be collected and third a guide hopper from where the solids fall down. The Equipment is completely enclosed when in operation.


The Screen can be Operated as Follows:

  • Manually as per requirement.

  • By using timers. ( for Backwash Pump ) Prior to the fitting of this fine screen a coarse screen of minimum 10mm needs to be installed.

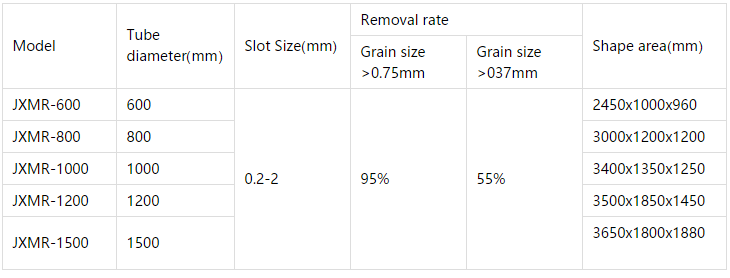

Technical Parameter


Advantages:

  • Direct collection of solids in bins without any operator interference.

  • Screen outer portion remains always clean which helps in achieving the capacity even when the Suspended solids Percentage fluctuate.

  • Very low power required.

  • Plug and Play Equipment / Ease of Installation

  • Minimum maintenance costs

  • Very low space


    Applications:

    • Municipal wastewater treatment plants

    • Plastic recycling, paper industry

    • Fruit and vegetable processing

    • Breweries, wine cellars

    • Sugar industry

    • Fiberglass industry, wood processing
