Bag filter name is also known as Bag Filter Housing、Industrial Filter Housings、Multi-bag Filter.Bag filter is widely used for liquid filtration. It can remove the particles of different size from liquid to achieve liquid filtration, purification, separation and recovery purposes.

Product Details

Bag filter name is also known as Bag Filter Housing、Industrial Filter Housings、Multi-bag Filter.

Bag type filter belongs to pressure filtration equipment which consist of filter cylinder, filtering cylinder head, quick opening mechanism, strengthened net and etc. Liquid flows into the filter bag which is installed inside the strengthened net through the side inlet tube, then the liquid permeates the filter bag to obtain qualified liquid and the impurities are trapped by the filter bag.

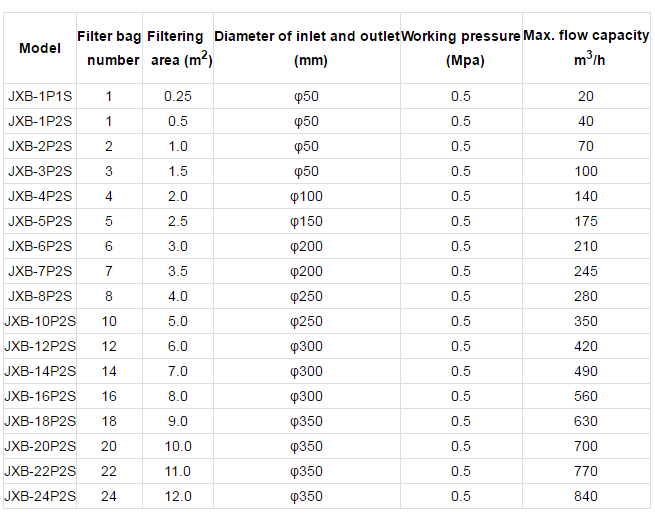

Technical Parameter

Advantage


1. Low side leakage rate which ensures the filtration quality.
2. Higher working pressure endurance, low pressure loss, low operation cost.
3. Filtration precision can reach 0.5μm.
4. High treatment capacity, high filth allowance
5. Easy to change filter bag



Application

Widely used in paint, beer, vegetable oil, medicine, cosmetics, chemicals, petroleum products, textile chemicals, photographic chemicals, plating solution, milk, mineral water, hot solvent, emulsion, industrial water, sugar, water, resin, printing ink, industrial waste water, fruit juice, edible oil, waxes, and other fields of precision filtration.
